ModelL16 SemiSuspended Hydraulic Reversible Plough

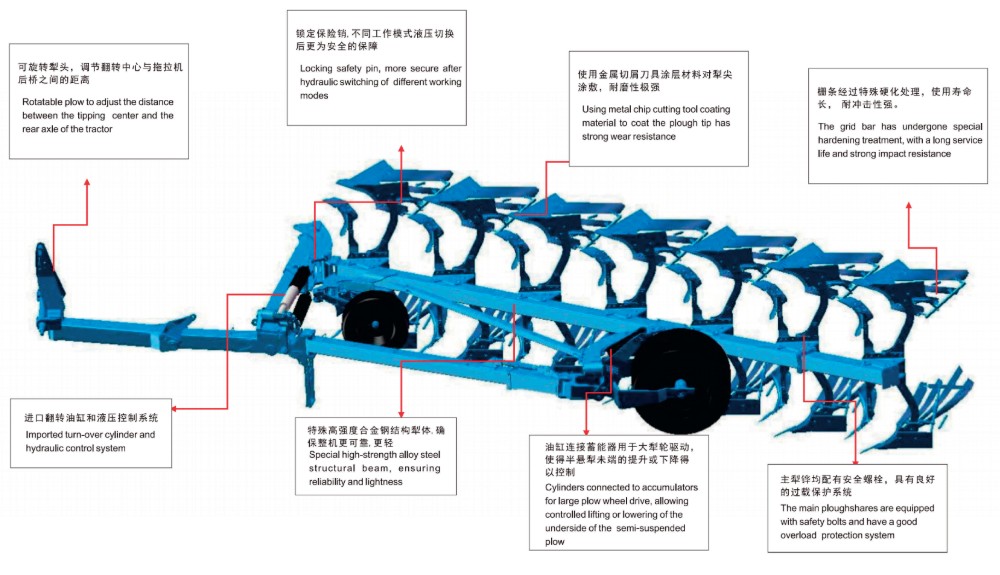

Product Features


Ø  Semi-suspension plows are better suited for large farms, flat open felds and scenarios that require deep plowing especially in complex soil conditions.

Ø  The main parts of the plough head, plough beam, turning mechanism and l-beam are all made of high-strenath special steel through leading heat treatment and processing technology, which grealy reduces the weight of the turning plough and makes the performance more reliable;

Ø  The working width is adiustable in four levels (33/38/45/50cm) to meet customers' needs for diferent working widths:

Ø  The working width is adjustable in four levels (37/42/49/55cm) to meet customers' needs for different working widths,

Ø  Ploughshare spacing of 100cm and 90cm spacing under the beam give the Big Plough the ability to work in any straw condition;

Ø  The ploughshare and small front plough are made of special wear-resistant materials for longer service life, and the ploughshare is equipped with a shear-bolt anti-overload device to ensure the safety of the ploughshare in special ground conditions.

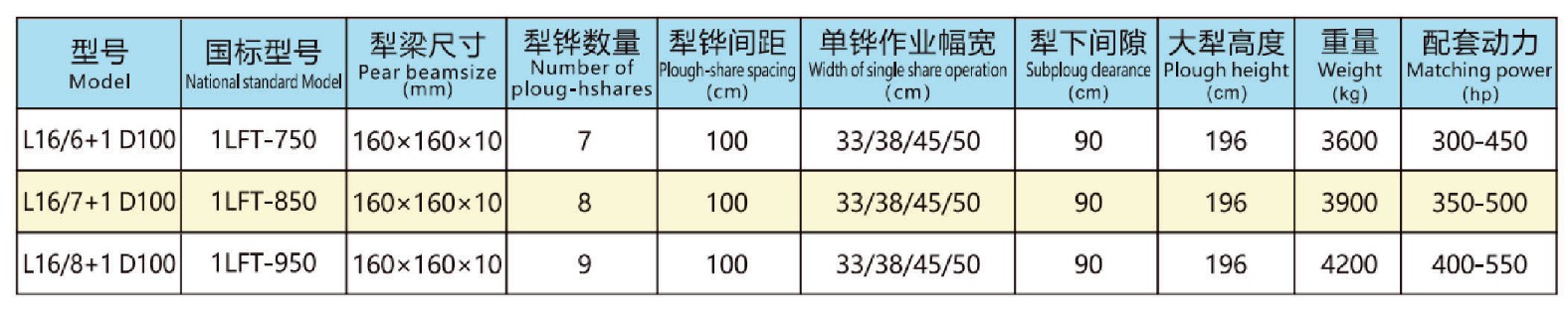

Technical Parameters


Product Features



Ø  Semi-suspension plows are better suited for large farms, flat open felds and scenarios that require deep plowing especially in complex soil conditions.

Ø  The main parts of the plough head, plough beam, turning mechanism and l-beam are all made of high-strenath special steel through leading heat treatment and processing technology, which grealy reduces the weight of the turning plough and makes the performance more reliable;

Ø  The working width is adiustable in four levels (33/38/45/50cm) to meet customers' needs for diferent working widths:

Ø  The working width is adjustable in four levels (37/42/49/55cm) to meet customers' needs for different working widths,

Ø  Ploughshare spacing of 100cm and 90cm spacing under the beam give the Big Plough the ability to work in any straw condition;

Ø  The ploughshare and small front plough are made of special wear-resistant materials for longer service life, and the ploughshare is equipped with a shear-bolt anti-overload device to ensure the safety of the ploughshare in special ground conditions.

Technical Parameters
